Prefabricated Rubber Running Track System for School Running Track & Field | NOVOTRACK
Prefabricated Rubber Running Track System for School Running Track & Field | NOVOTRACK
Detail Information
Product Description
Prefabricated Rubber Running Track System
NTTR
NOVOTRACK athletics tracks are prefabricated, made with vulcanized rubber under controlled factory conditions. NTTR is the ideal athletic track surface for facilities dedicated to both competition and training because it guarantees athletes the perfect combination of shock absorption, vertical deformation and energy return.
Foundation
Before the construction of a prefabricated rubber track, the ground must meet certain hardness standards. Therefore, the foundation of the prefabricated rubber track must be properly cured.
Surface Layer
The upper surface layer with better anti-skid and drainage.The top layer is wear-resistant, protecting the roll and providing
UV resistance, anti-aging,
increased friction, and anti-slip effects.It's made of natural rubber.
Base Layer
The lower layer is a concave air cushion arranged side by side, with an average of 8400 holes and grooves per square meter.The bottom layer is honeycomb-designed to maximize anchoring density.
Adhesive
The bonding strength is further enhanced, as the prefabricated rubber running track used with rigid adhesive solve the issue of traditional adhesive failing before the surface layer.solid and reliable overall
Properties
The properties of this product perfectly achieve the international standards.
|
Test Items
|
National Standard
Parameter Requirements |
Measured Parameters
|
Achieve Standard
|
|
shock absorption/ (%)
|
25～50
|
38.8
|
Qualified
|
|
vertical deformation/ (mm)
|
0.6～2.5
|
1.8
|
Qualified
|
|
Anti-skid value/(BPN, 20℃)
|
≥47 (wet test)
|
49
|
Qualified
|
Tensile Strength/ ( MPa) | ≥0.5 | 0.76 | Qualified |
Elongation at break/(%) | ≥50 | 162.3 | Qualified |
Flame retardant/ (class) | Ⅰ | Ⅰ | Qualified |
Technical Factors
NovoTrack products have passed a series of environmental indicators testing, obtaining Type II environmental certification. They are children-friendly products, meeting both physical and chemical indicators according to national standards GB36246-2018, GB/T14833-2020, and GB/T22517.6, making them truly eco-friendly products.
Durable Layer
Thickness: 4mm±1mm
Honeycomb Air Cells
Average per square meter approx 8400 pass grooves
Elastic Bottom Layer
Thickness:
9mm±1mm
Product Variants
Product dimensions & Color options
Dimensions
Thickness: 8-15mm
Product size can be customized

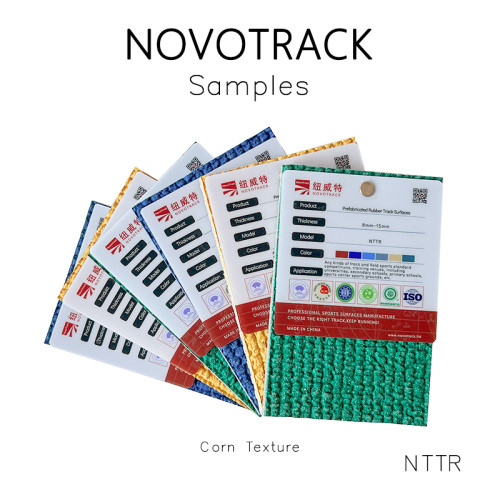

Color Options
Red, Blue, Grey, Yellow, Green
